The i72120 GPIB-ASIC is the ideal solution to implement a IEEE488.2 GPIB interface for next generation PCI based instruments

  • Talker/Listener interface for instrumentation devices
  • PCI v2.2 32-bit/33MHz Target with 3.3 VCC, 3.3/5.0 VIO
  • NEC µPD7210 compatible register layout

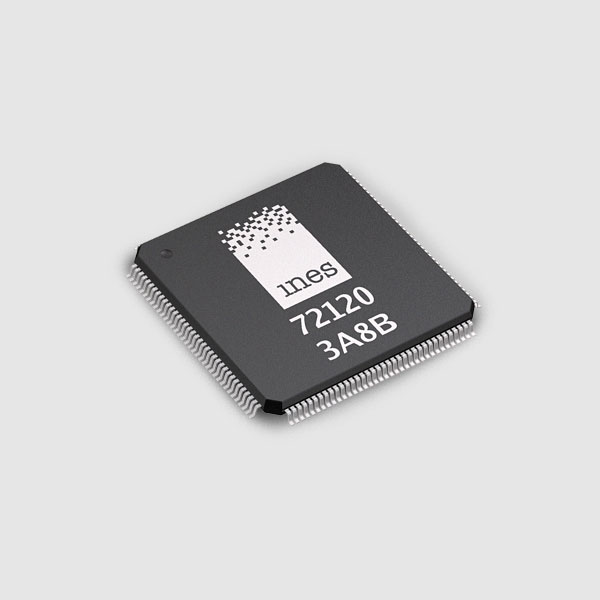

  • 144 pin TQFP package
  • RoHS conformant (Pb-free)

Gern beantworten unsere Experten Ihre Fragen.

Technische Fragen


The i72120 GPIB-Chip is the ideal solution to implement a IEEE488.2 GPIB interface for next generation PCI based instruments. The GPIB-ASIC is designed to meet all of the functional requirements for talker and listener (TL) devices as specified by the IEEE Standards 488.1-1987 and 488.2-1987. Connected between the PCI bus and the GPIB, this GPIB-IC provides high-level management of the GPIB to unburden the processor and to simplify both hardware and software design. The i72120 is fully compatible with the PCI specification and requires only the addition of bus driver/receiver components to implement a talker/listener GPIB interface.


The IEEE Standard 488 describes a "Standard Digital Interface for Programmable Instrumentation" which, since its introduction in 1975 has become the most popular means of interconnecting instruments and controllers in laboratory, automatic test, and even industrial applications. Refined over several years, the 488-1978 Standard, also known as The General Purpose Interface Bus (GPIB), is a highly sophisticated standard providing a high degree of of flexibility to meet virtually all instrumentation requirements. The i72120 implements all of the functions that are required to interface to the GPIB as a talker or listener device. While it is beyond of the scope of this document to provide a complete explanation of the IEEE 488 Standard, a basic descriprion follows:

The GPIB interconnects up to 15 devices over a commom set of data control liners. Three types of devices are defined by the standard: talker, listener, and controller, atthough some devices may combine functions such as talker/listener or talker/controller.

Data on the GPIB is transferred in a bit-parallel, byte-serial fashion over eight data I/O lines (/DIO[1]-/DIO[8]). A three-wire handshake is used to ensure synchronisation of transmission and reception. In order to permit more than one device to receive data at the same time, these control lines are "open collector" so that the slowest device controls the data rate. A number of other control lines perform a variety of functions such as device addressing, interrupt generation and so forth.

The i72120 implements all functional aspects of talker and listener as defined by the 488.1-1987 Standard on a single chip.



GPIB Capabilities

IEEE 488.1 Capabilities:
AH1, SH1, T/TE5, L/LE3, SR1, RL1, PP1/PP2, DC1, DT1, C0

GPIB Handshake Rate: > 1Mbytes/sec

Environmental and Physical

Package: 144 TQFP, 22.0 mm x 22.0 mm x 1.6 mm

Storage Temperature: -20…80°C

Ambient Temperature: -0…70°C


i72120-33 - Tray of 60 units
