The CBC-24 cable is most useful when the dual right-angle connectors get in the way of other system cables and particularly in a computer back plane.

  • Premium Cabling Solution
  • Stackable and Inline Connector
  • Ultimate in EMI protection
  • Available in 0.5m…8m length

Gern beantworten unsere Experten Ihre Fragen.

Technische Fragen

Description

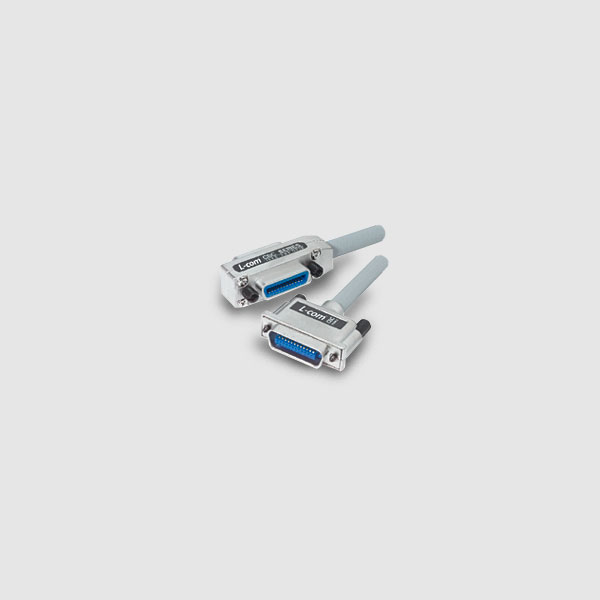

This premium series has one conventional Male-Female connector. The other end terminates to a straight male-only connector, a feature sometimes prefered when there is no need to have a female end exposed. This cable is most useful when the dual right-angle connectors get in the way of other system cables and particularly in a computer back plane.

Two copper braid shields coupled with two foil shields work to reduce the amount of radiated emissions. This helps many systems to pass FCC Part 15, MIL-STD-461A, VDE 0871, and VDE 0875. All wires are twisted pairs to maintain a low capacitance within the 150pF/m IEEE specification. Besides superior electrical characteristics, this cable has been designed to last a very long time. Care has been given to offer a cable with extreme flexibility that is equipped with a superiout strain relief. This prevents the cable from coming apart when it is bent at a sharp angle, which has been a common fault with many IEEE-488 cables on the market today. Finally, cast aluminum, nickel plated shells are used to prevent corrosion and they have overlapping seams rather than butt-jointed. There is nothing else one could hope for in the makeup of the best IEEE-488 cable possible. All this is offered at a realistic price.

Spezifikationen

Makeup

Cable:
4 Inner Twisted Pairs, 8 Outer Twisted Pairs, Inner Mylar Shield, Inner Braid Shield, Drain Wire, Outer Mylar Shield, Outer Braid Shield, Flexible Outer Cover

Connector:
Reliable Strain Relief, Overlapped Seams, Cast Aluminium Nickel Plated Shell, Cast Connector Guard, Metric Jackscrews,

Conformance: STD IEEE-488



Bestelldaten

CBC24-0M5 - CBC24 0.5 meter length

CBC24-1M - CBC24 1 meter length

CBC24-2M - CBC24 2 meter length

CBC24-3M - CBC24 3 meter length

CBC24-4M - CBC24 4 meter length

CBC24-5M - CBC24 5 meter length

CBC24-8M - CBC24 8 meter length
