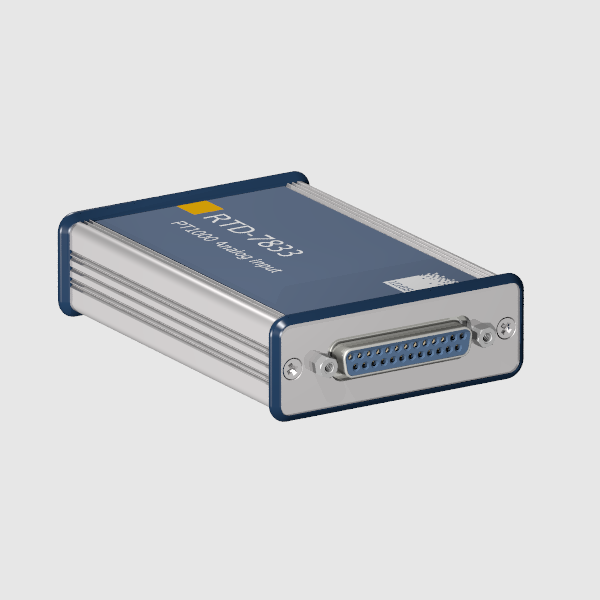

Front view

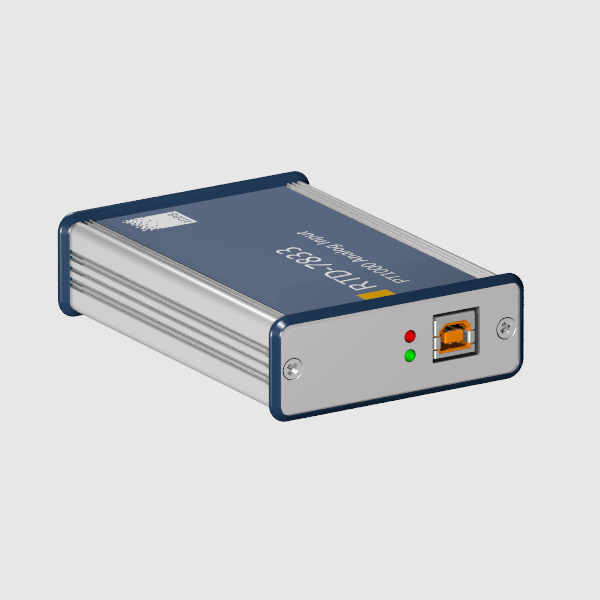

Rear view

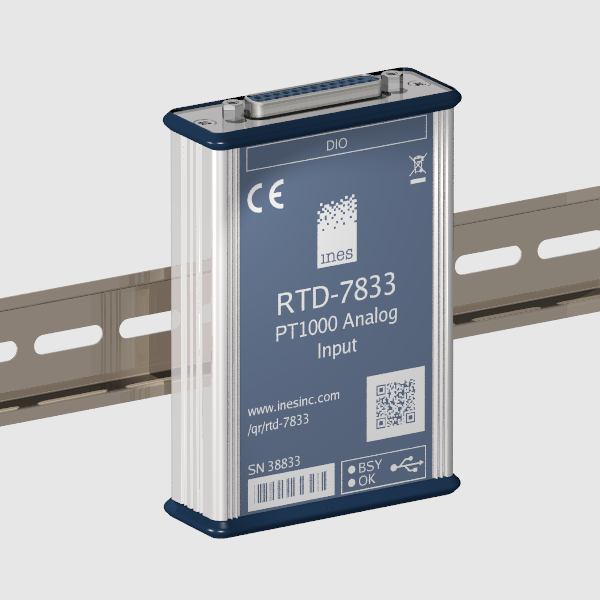

DIN rail mount version

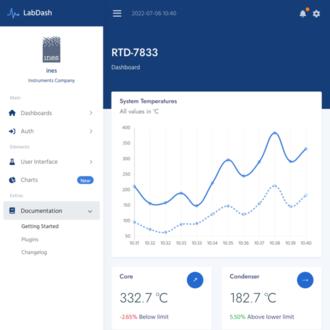

LabDash Interface

Das RTD-7833 ermöglicht die direkte Anbindung von Widerstandsthermometern (z.B. PT-Sensoren) an alle Systeme mit USB Anschluss. Das Gerät beinhaltet einen hochpräzisen Referenzwiderstand und galvanische Trennung.

  • 4 analoge Eingangskanäle
  • Ratiometrische Messungen mit Präzisionsreferenz
  • Windows 10/11, Linux, 32/64 bit

Gern beantworten unsere Experten Ihre Fragen.

Technische Fragen

Eigenschaften

  • 4 Kanäle
  • Direkte Temperaturmessung ohne Umrechnung
  • Galvanische Trennung Analog/USB
  • USB Verbinder mit hoher Haltekraft

Anwendungen

  • Prozessteuerung
  • Mess- und Prüftechnik
  • MQTT Publisher

Overview

The RTD-7833 is a space-saving industrial I/O module. It provides for save cable connections due to the use of WAGO Cage Clamp connecters rather than screw terminals (which, even if properly torqued at installation time, might loosen, especially whenever there are vibrations or significant changes of temperature).

A high retention USB connector allows for 50% more retention force than the standard USB preventing accidental disconnect.

Spezifikationen


Bestelldaten

RTD-7832 - 400 Ohm Reference: Instrument, USB cable (1m), Software Download Card

RTD-7833 - 4kOhm Reference: Instrument, USB cable (1m), Software Download Card

Ressourcen

Datasheet
